Lian Li O11 Air Mini

The O11 Air Mini is Lian Li’s compact dual-chamber case designed with der8auer around airflow. The front, top and side panels are mesh, and two 140 mm and one 120 mm PWM fans come installed. Despite the small body it takes an E-ATX (up to 280 mm) motherboard, a 362 mm graphics card and a full-size ATX power supply; its cube-like deep body takes up unusual desk space.

O11 Air Mini (2021); black O11AMX and white O11AMW. The O11 Dynamic Mini, O11D Mini V2 Flow and full-size O11 Dynamic are separate cases.

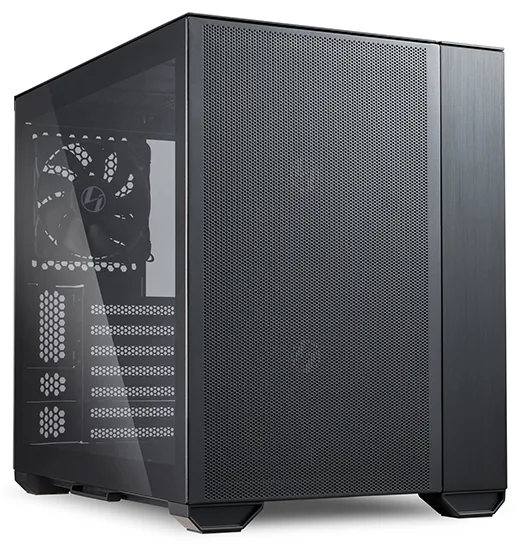

Lian Li O11 Air Mini — Lian Li image of the O11 Air Mini in black.
Lian Li image of the O11 Air Mini in black.

Specifications

SpecificationValue
Size and materials400 (D) × 288 (W) × 384 (H) mm; 4 mm aluminium panel, 0.8 mm mesh panel, 4 mm tempered glass

The mesh pattern on the front, top and side is designed to let fans draw air straight from outside.

MotherboardE-ATX (up to 280 mm wide), ATX, Micro-ATX, Mini-ITX

The 7-slot back panel is for ATX, Micro-ATX and ITX; the 5-slot back panel is for Micro-ATX and ITX. Both are included.

Graphics card and vertical mountingUp to 362 mm long; 7 or 5 expansion slots; vertical GPU support (top or bottom mode)

With the vertical GPU bracket in top mode, two 120 mm fans can be fitted under the card; in bottom mode there is no room for them.

CPU cooler and power supplyCPU cooler up to 170 mm; ATX power supply up to 200 mm
Included fans2 × 140 mm PWM at the front, 1 × 120 mm PWM at the rear

PWM fans adjust their speed to temperature using a signal from the motherboard.

Fan supportTop 3 × 120 / 2 × 140 mm; side 2 × 120 mm; bottom 2 × 120 / 2 × 140 mm; front 2 × 120 / 2 × 140 mm; rear 1 × 120 mm
Radiator supportTop 240 or 280 mm; side 240 mm; bottom 240 or 280 mm; front 240 or 280 mm

When fitting a 240 mm radiator at the top with an ATX board, an offset bracket is used to avoid clashing with memory modules.

Storage6 × 2.5-inch SSD or 3 × 2.5-inch SSD + 3 × 3.5-inch HDD

Drives mount in the chamber behind the motherboard tray.

Front I/O2 × USB 3.0, 1 × USB 3.1 Type-C, 1 × HD Audio

The Type-C port needs a matching front-panel USB-C header on the motherboard.

Dust filter1 × removable bottom dust tray

From the manufacturer

Lian Li presents the O11 Air Mini as a small tower with big airflow, a modular back panel and a vertical GPU option. Lian Li

Strengths and limitations

  • According to KitGuru, the design with input from der8auer works well: a Core i9-11900K + RTX 3080 system drawing 580 W at the wall stayed under control even with a single 280 mm radiator; the RTX 3080 ran cool and the processor measured 85–90 °C. The dual-chamber layout makes cable management and adding storage easy, and the empty case floor leaves room for a second radiator. With a Micro-ATX board the top opens up further for cooling. The one clear issue is that the unusual shape can make it hard to find desk space.

    KitGuru review (2021); tested with a Core i9-11900K, Palit RTX 3080 10 GB and a 280 mm AIO.

    KitGuru: Lian Li O11 Air Mini review
