MSI Katana 17 HX B14WGK-032XES

The Katana 17 HX B14WGK is MSI’s 17-inch entry-to-mid gaming laptop. This configuration has an RTX 5070 Laptop GPU with up to 115 W, a 16-core Core i7-14650HX, a MUX switch and 32 GB of DDR5. Notebookcheck found GPU performance stable; the plastic chassis, loud fans under load, 8 GB of VRAM and short battery life were noted as weaknesses.

Katana 17 HX B14WGK-032XES (9S7-17L791-032, Spain): Core i7-14650HX, RTX 5070 Laptop GPU 8 GB, 32 GB DDR5, 1 TB SSD, 17.3-inch FHD 144 Hz display, no operating system (Free DOS). QHD 240 Hz, Windows and other memory SKUs in the same B14WGK family, and the Katana 15 HX, are separate configurations.

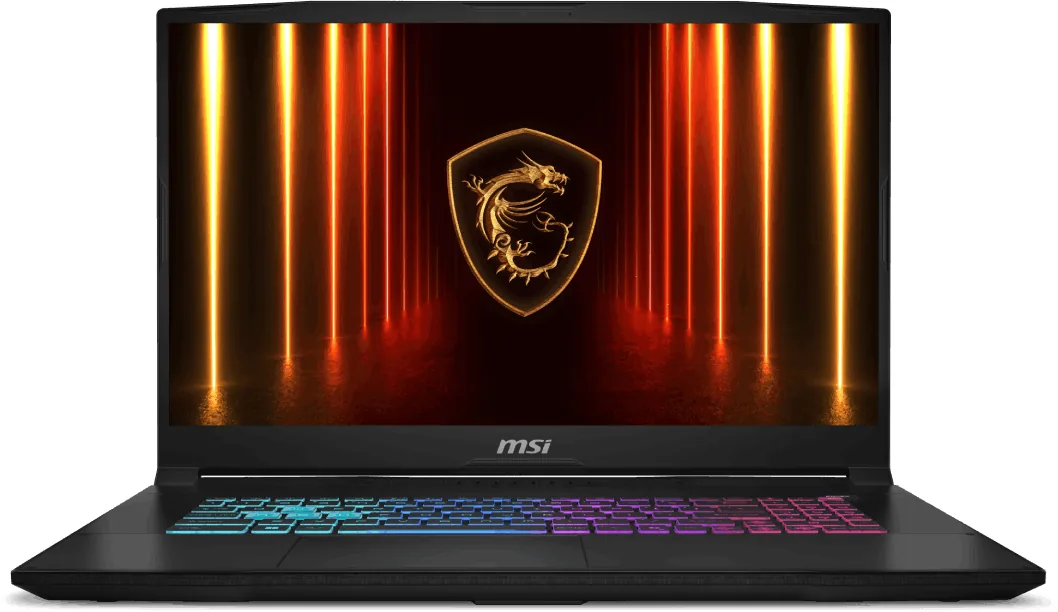

MSI Katana 17 HX B14WGK-032XES — Product image of the Katana 17 HX B14WGK-032XES from MSI’s Spanish store.
Product image of the Katana 17 HX B14WGK-032XES from MSI’s Spanish store.

Specifications

SpecificationValue
ProcessorIntel Core i7-14650HX; 16 cores (8 performance + 8 efficiency), 24 threads, 30 MB cache, up to 5.2 GHz; Intel HM770 chipset

MSI states that the CPU and GPU can run at full power together on this model (Full Power CPU & GPU).

GraphicsNVIDIA GeForce RTX 5070 Laptop GPU; 8 GB GDDR7; up to 2347 MHz boost clock; up to 115 W maximum graphics power with Dynamic Boost

Graphics power (TGP) decides how fast the same GPU runs in different laptops; MSI notes the value may vary by scenario. 8 GB of video memory can be a limit at high texture settings.

Graphics modeDiscrete graphics mode (MUX design)

A MUX switch connects the display directly to the NVIDIA GPU, removing the integrated graphics pass-through in games; switching modes may need a restart.

Display17.3-inch FHD (1920 × 1080), 144 Hz, IPS-level panel

“IPS-level” is MSI’s term for panels with IPS-like wide viewing angles.

Memory32 GB (2 × 16 GB) DDR5; up to DDR5-5600; 2 slots, max 96 GB

Two modules run in dual channel. MSI notes actual speed varies with the module combination and CPU.

Storage1 TB NVMe PCIe Gen4 SSD; 1 M.2 slot

With the single M.2 slot already used, adding capacity means replacing the SSD.

Ports3 × USB-A 3.2 Gen 2; 1 × USB-C 3.2 Gen 2 (DisplayPort and Power Delivery 3.0); 1 × HDMI 2.1 (8K 60 Hz / 4K 120 Hz); Gigabit Ethernet; headphone/mic combo jack

There is no USB4 or Thunderbolt; the USB-C port carries data at up to 10 Gbit/s.

WirelessIntel Wi-Fi 6E AX211; Bluetooth 5.3
Keyboard, camera and audio4-zone RGB gaming keyboard with Copilot key; HD 720p 30 fps webcam; 2 × 2 W speakers, Nahimic 3, Hi-Res Audio Ready
Battery and adapter4-cell 75 Wh; 240 W adapter

The adapter must be connected for full performance in games; on battery the GPU and CPU run at lower power.

Size and weight398 × 275.6 × 27.8 mm; 2.7 kg (with battery)
Software and securityNo operating system (Free DOS); fTPM 2.0

Windows must be installed separately. fTPM 2.0 provides the security module Windows 11 requires in processor firmware.

Warranty3-year limited warranty (MSI Spain)

From the manufacturer

MSI presents the Katana 17 HX as a powerful, versatile gaming laptop with Cooler Boost 5 cooling, a MUX-based discrete graphics mode and RTX 50 series graphics. MSI Spain

Strengths and limitations

  • In Notebookcheck’s test the RTX 5070 Laptop GPU performed stably at 115 W; the screen opens to 180° and there are two SO-DIMM slots. The chassis was found rickety and cheap-looking. Fans are quiet at idle at 31–34 dB(A) but quite loud under load at 50–59 dB(A). The 75 Wh battery lasted about 5 hours in the 150-nit Wi-Fi test. 8 GB of VRAM is not future-proof and the keyboard sits too far down; there is no USB4/Thunderbolt or card reader.

    Notebookcheck, Florian Glaser, 23 June 2025; QHD 240 Hz B14WGK unit supplied by MSI Germany. Display measurements do not apply to this FHD SKU.

    Notebookcheck: MSI Katana 17 HX B14WGK review

Owner experiences and issues

  • A buyer on LDLC (faunepix, purchased June 2026) says the laptop fully meets expectations for video editing in DaVinci Resolve and Premiere Pro and photo work in Photoshop.

    LDLC (France), Katana 17 HX B14WGK-014FR (QHD 240 Hz, 32 GB, Windows 11 Pro); 1 verified buyer review. Same GPU and CPU, different display and software.

    LDLC: MSI Katana 17 HX B14WGK-014FR customer reviews
